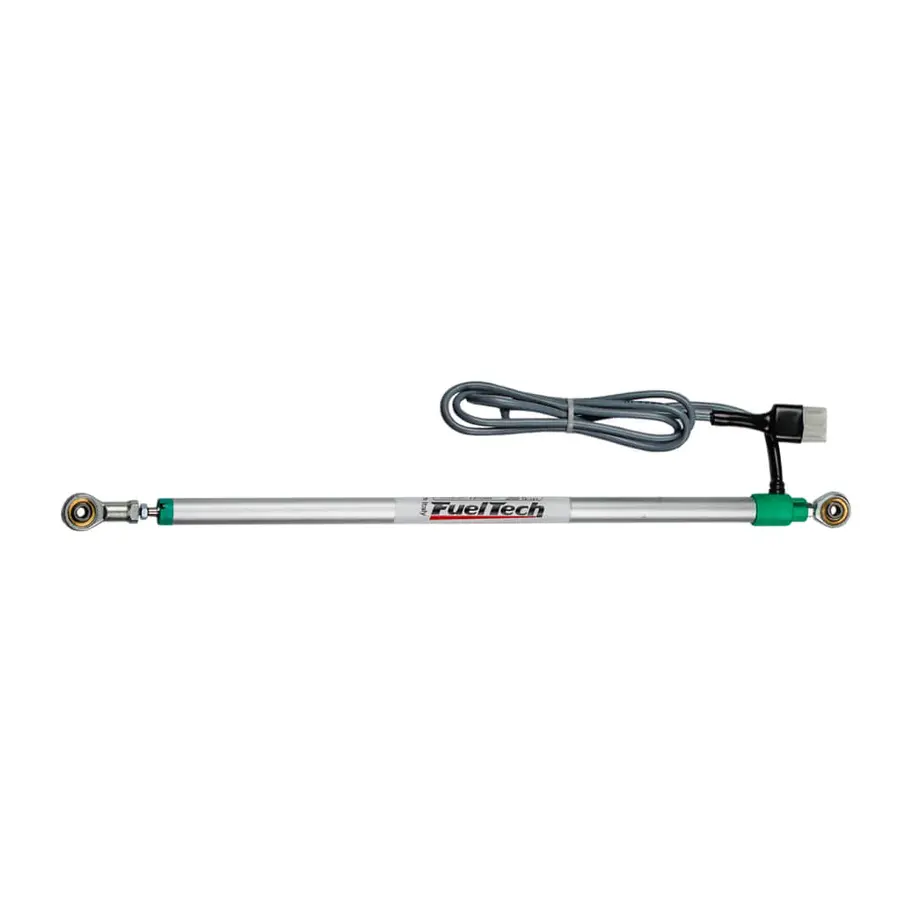

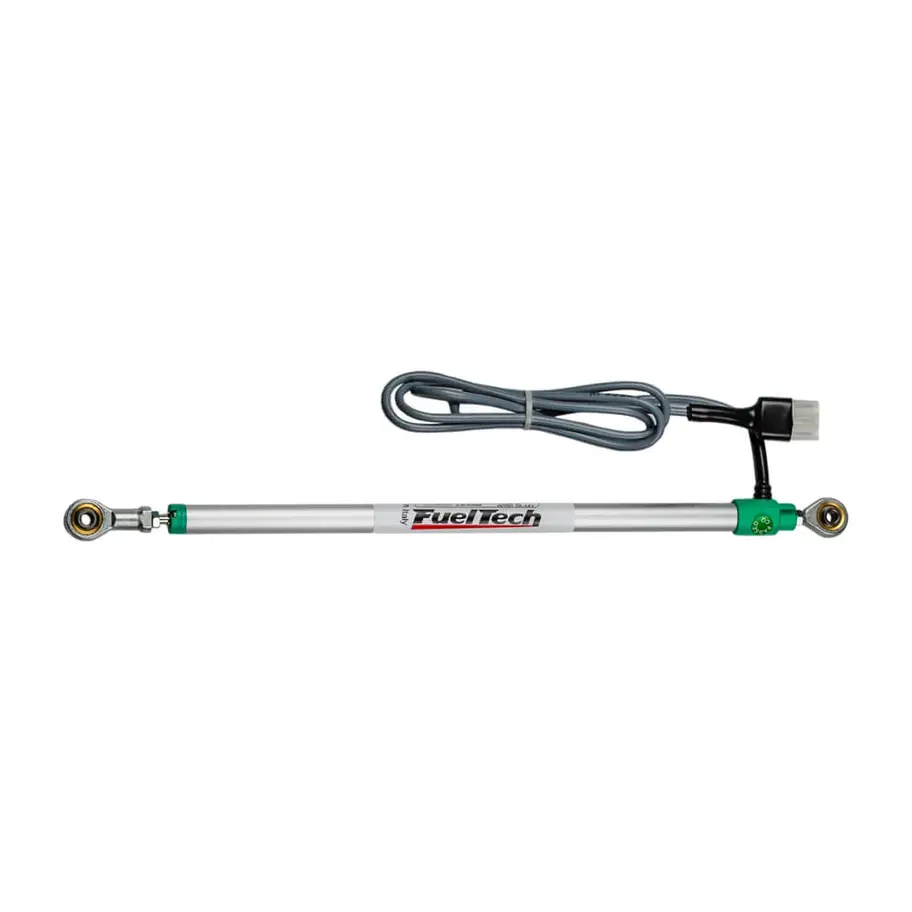

Travel Sensor

TECHNICAL DESCRIPTION

4" Travel Sensor:

• Total Travel: 4"
• Length Closed: 9"
• Length Extended: 13"
• Mounting: 5mm Heim joints
• Cable Length: 41"


6" Travel Sensor:

• Total Travel: 6"
• Length Closed: 12"
• Length Extended: 18"
• Mounting: 5mm Heim joints
• Cable Length: 41"


8" Travel Sensor:

• Total Travel: 8"
• Length Closed: 13"
• Length Extended: 21"
• Mounting: 5mm Heim joints
• Cable Length: 41"


10" Travel Sensor:

• Total Travel: 10"
• Length Closed: 16"
• Length Extended: 26"
• Mounting: 5mm Heim joints
• Cable Length: 41"


Voltage/Output:

• Supply voltage: 5V
• Signal Output: 0.5V - 4.5V


Connector Pinout:

• Pin 1 - Ground (Brown)
• Pin 2 - Signal (Yellow)
• Pin 3 - 5V (Blue)
